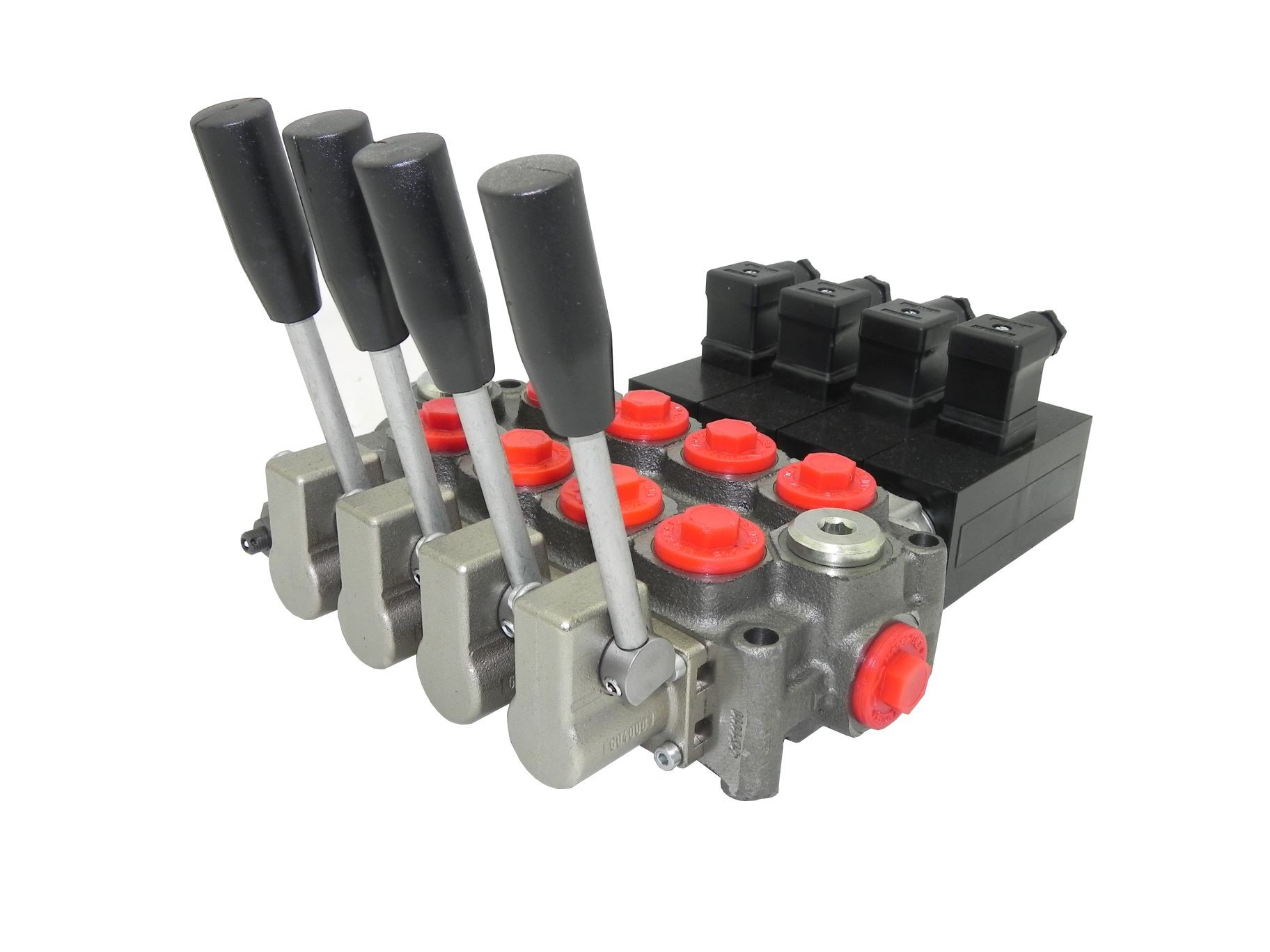

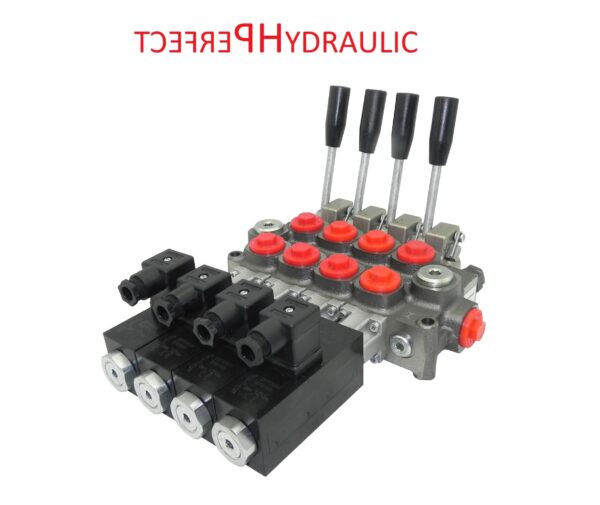

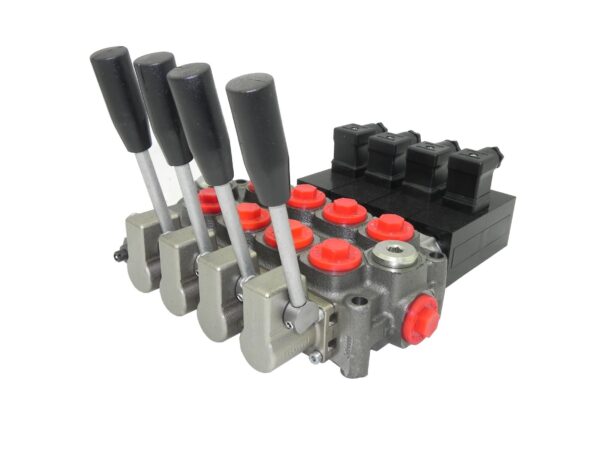

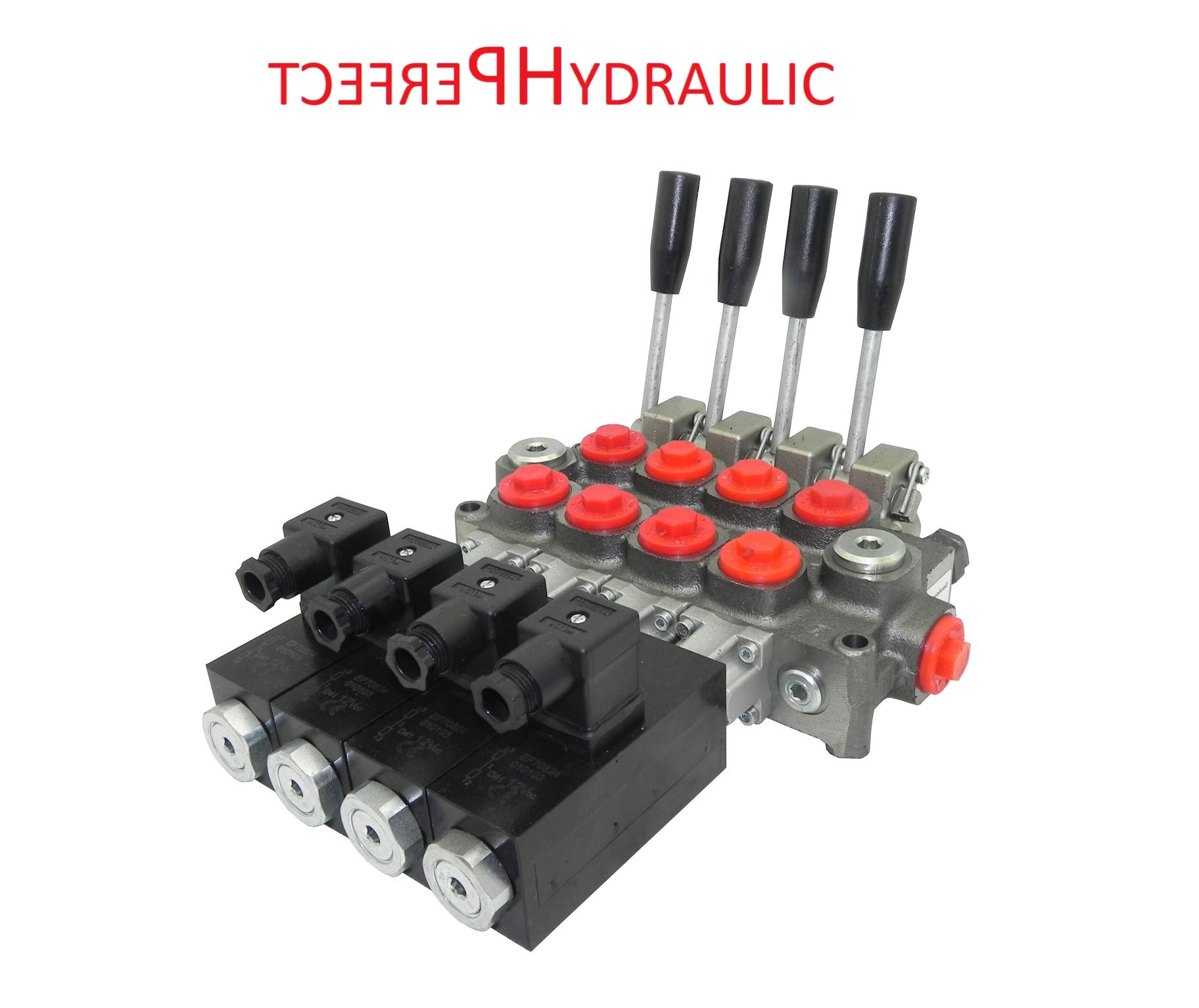

The distributor is suitable for various types of machinery such as agricultural machinery, tractors, sprayers, turners, cyclops, HDS loaders, construction machinery, loaders, excavators, sweepers, industrial machinery and other hydraulically controlled equipment.

Ideally suited for machines and vehicles where the ability to control the distributor from two places is required, e.g. electrically from the cab and with levers while standing directly at the distributor, such is the case for HDS and cranes.

Technical data:

Electric plug and lever included.

Recommended system oil flow: 0 – 60 l/min.

Example of control: three double-acting actuator.

Can be connected in series to an existing system (pressure sleeve required).

Control:

Three-position slider (1 – 0 – 2), on a spring, i.e. it returns to the neutral position by itself when the power supply is cut or the lever is released. While the spool is in the neutral position (0), oil passes freely through the distributor into the return channel, the pump then does not run at pressure and is relieved.

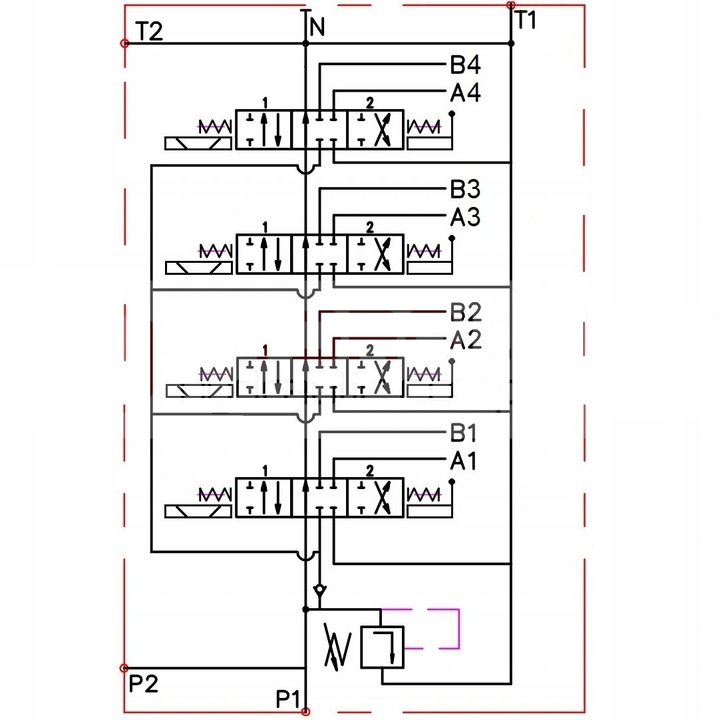

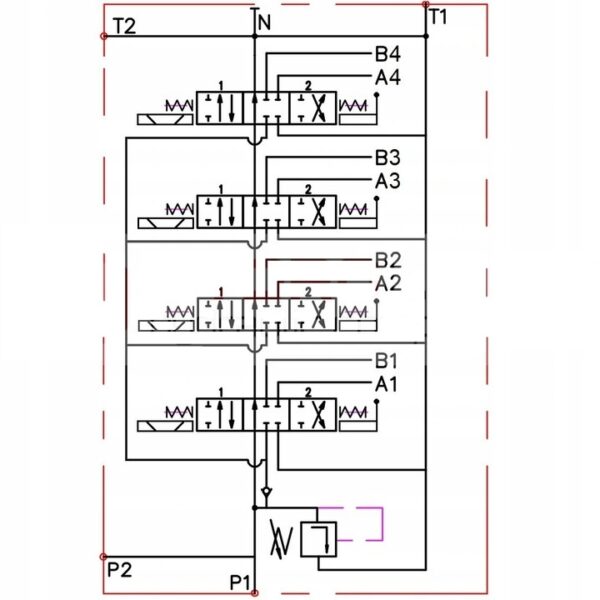

Operating principle of the spool:

Position 0 neutral (current flow to both solenoids is cut off) cylinder piston rod stands – oil goes to overflow.

Position 1 operating (current flow to coil one only) actuator piston rod extends.

Operating position 2 (current flow to coil two only) actuator piston rod retracts.

Current:

Direct current (DC) supply 12V/24V optional

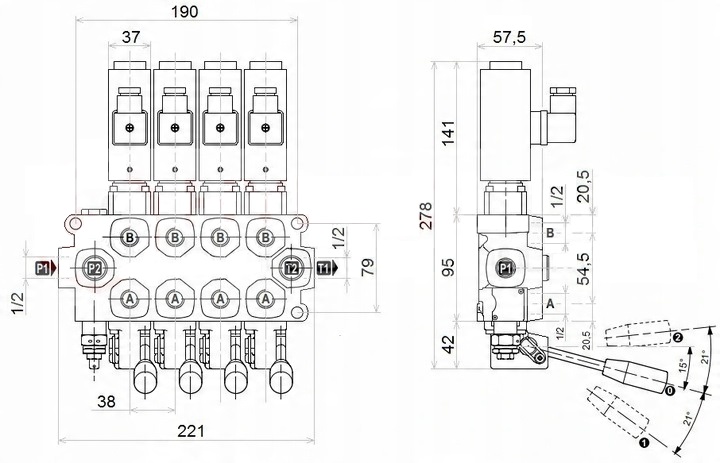

Connection:

Pump supply (P1, P2): 1/2” BSP internal thread

Return to tank (T1, T2): 1/2” BSP internal thread

Sections (A, B): 1/2” BSP internal thread

Pressure range:

Maximum pressure on supply: 250Bar

Maximum pressure on return: 50Bar

Maximum pressure on sections: 300Bar

Bypass valve pre-set at 175Bar

Self-adjustable, full turn change of 30Bar
