Description

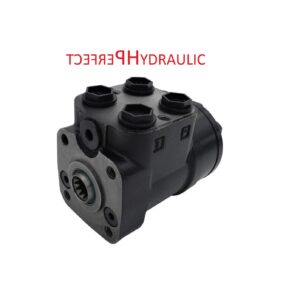

STEERING CONTROL UNIT ORBITROL OSPC 100 ON 150N2151

Comparative figures:

OSPC-100-ON; OSPC100ON; 150N2151; 5050871380; 7019756M91

Oil Connections – Female Threads [BSP]:

P-1/2″

T-1/2″

A – 1/2″

B – 1/2″

In the neutral position, the oil flows from port “P” (pump) to port “T” (tank)

Pressure relief valve set to 160 bar

Shock valve set to 240 bar

Geometric Volume: 100 cm3/U

Recommended oil flow in the system: 8 to 12 l / min.

Mounting the steering column: 4x M10 – 16mm screw
