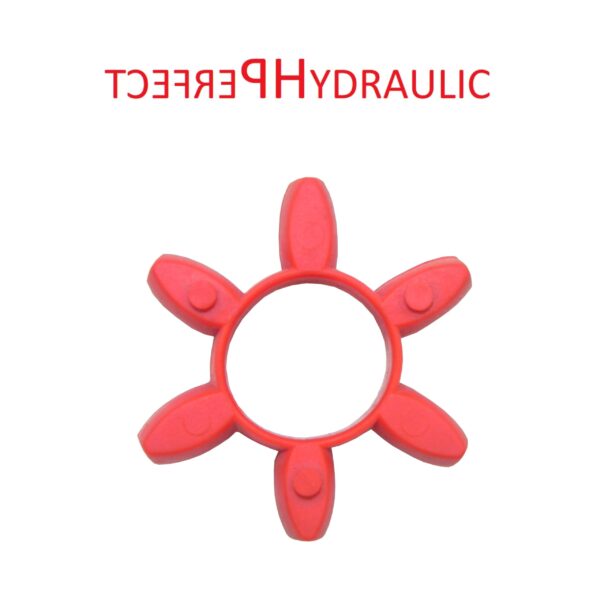

Elastomer insert for coupling star coupling GET 19A-19A

3.50

SKU: GET19-24 CZERWONA Category:

Description

Elastomer insert for coupling star coupling GET 19A-19A

The claw coupling consists of two hubs with claws and an elastomer insert separating the hubs. This design ensures the damping of torsional vibrations, thermal and electrical insulation and uninterrupted operation even after the insert is destroyed. In addition, the flexibility of use allows compensation for assembly errors of the connected shafts. The hardness of the application is directly reflected in the nominal torque of the coupling.

Raw coupling for drilling holes yourself.

Insert technical data:

Size: 19/24

Number of teeth: 6

Outer diameter: 40mm

Inner diameter: 18mm

Hardness: 98 ShA

Material: thermoplastic rubber

Additional information

Weight0.25 kg
