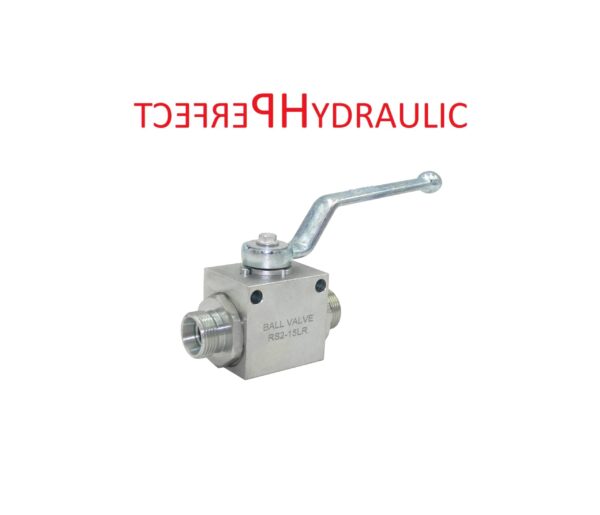

Hydraulic high pressure ball valve 2-way M22x1.5

16.00

SKU: RS2 M22-1.5 15L Category:

Description

Hydraulic high pressure ball valve 2-way M22x1.5

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connection:

Connect A and P to the supply line where it is necessary to open and close the flow.

Principle of operation:

The “close/open” valve is used to block the flow of oil in a single hydraulic line. The valve can be closed and opened even at high pressure.

Technical data:

Number of hydraulic holes in the body: 2

External threads in the body: M22x1.5

Body material: galvanized steel

Permissible maximum pressure: 500 bar

Weight: 2 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Mineral oil based hydraulic oil

Additional information

Weight1 kg
