HYDRAULIC MOTOR BMV SMV OMV 800 SHAFT 50mm

Hydraulic motor orbit motors type BMV Displacement 800 cm3/rev Max. speed 300 rpm

The motors have a variable direction of rotation and the possibility of serial connection with other motors.

ideal for drilling rigs

Technical data:
Rotation direction: bidirectional
Internal threads in the body: BSP 1″
Ports: side connection
Flange mounted on 4 holes, diameter 18 mm
Spacing of mounting holes on a circle with a diameter of 200 mm
Body material: cast iron

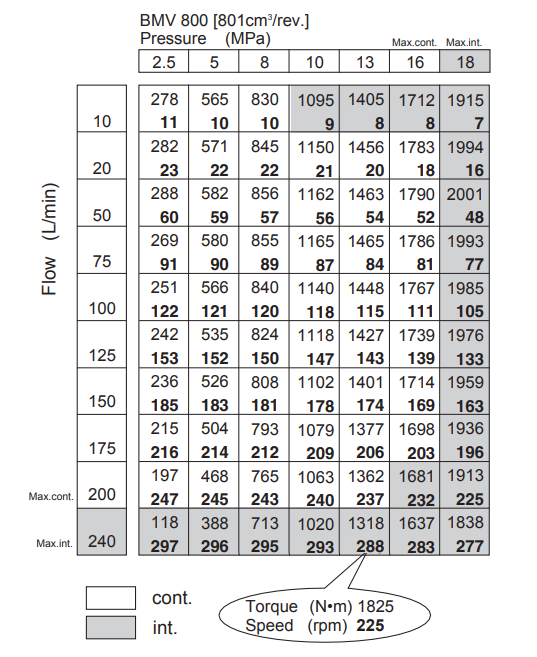

Maximum continuous operating parameters:
Maximum flow: 200 l/min
Maximum rotation speed: 250 rpm
Maximum pressure: 16 MPa (160 bar)
Maximum power: 42.5 kW
Maximum torque: 188 daNm (1880 Nm)

Maximum parameters in intermittent operation, max. 6 seconds per minute:
Maximum flow rate: 240 l/min
Maximum rotation speed: 300 rpm
Maximum pressure: 18 MPa (180 bar)
Maximum power: 48 kW
Maximum torque: 211 daNm (2110 Nm)
