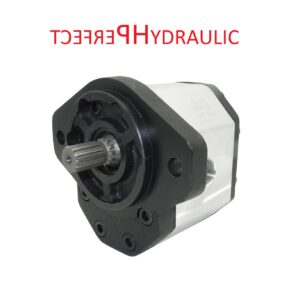

Hydraulic pump gear pump BG3 63 ccm shaft 1:8 size 3 flange connection

145.00150.00

SKU: N/A Category:

Description

Hydraulic pump gear pump BG3 63 ccm shaft 1:8 size 3 flange connection

Description:

Hydraulic pumps 63cc/rev

Direction of rotation: left or right

Fit at the centering collar (shaft) = 50.8 mm

Tapered shaft: taper 1.8

Suction side B ø51

Pressure side b ø40

Front and end caps = cast

Hydraulic pump 63cc pressure 230 bar

Flow rate: 94 l/min (at 1500 rpm)

Additional information

WeightN/A
Direction of rotation

left, right
