Description

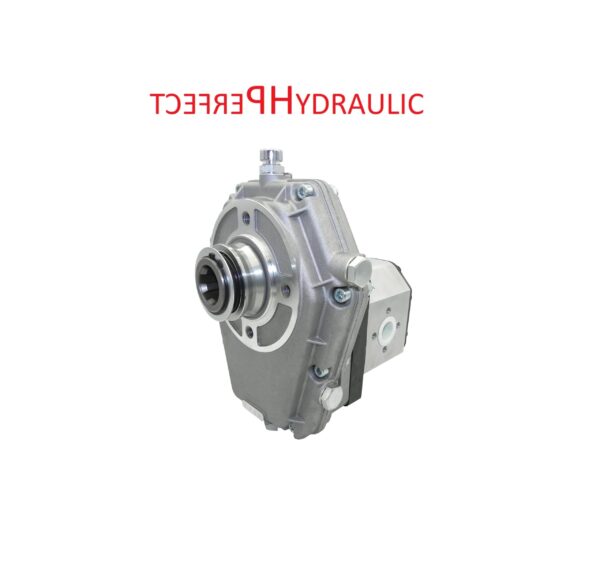

PTO gear size 3 transmission sliding sleeve 70004-6 with pump 33ccm 67L
size 3 with sliding sleeve with detent
Technical specifications:
Gear ratio 1 : 3.8
33cc = 67 l/min
Operating pressure: 200 BAR
Suction side B ø51
Pressure side b ø40
Performance of the set in l/min related to revolutions on the PTO shaft:
220 rpm at the PTO, capacity 28 l/min
320 rpm at the PTO, capacity 40 l/min
430 rpm at the PTO, capacity 54 l/min
540 rpm at the PTO, capacity 67 l/min
The PTO gear is driven via a cardan shaft
PTO shaft gear stub size 3 for rear 1:3.8 70001-6
PTO gear with size 3 with sliding sleeve with detent
Description for this PTO gearbox:
PTO gearbox
size 3 with sliding sleeve with detent
Technical specifications:
Gear ratio 1 : 3.8
Maximum power: 20 kW
A typical 1.3/8″ PTO shaft protrudes from the gearbox
Revolutions on the PTO shaft: max. 540 rpm
It has a sight glass to check the gear oil level.
Ability to work with pumps of the second group
Material: aluminum body, steel gears
Filling with gear oil required
When starting up for the first time, an oil change is recommended after the first 50 operating hours in order to increase the service life of the gearbox.
