Description

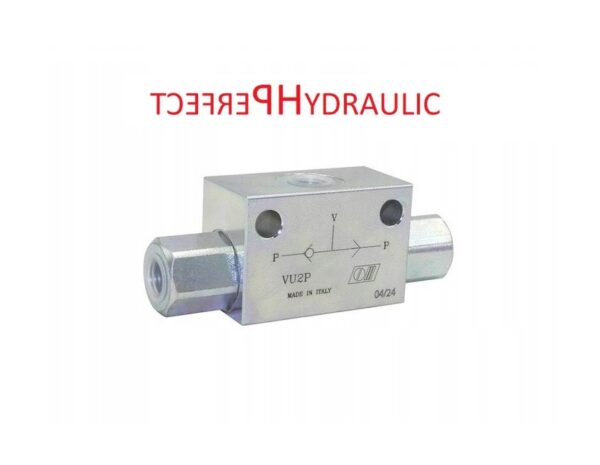

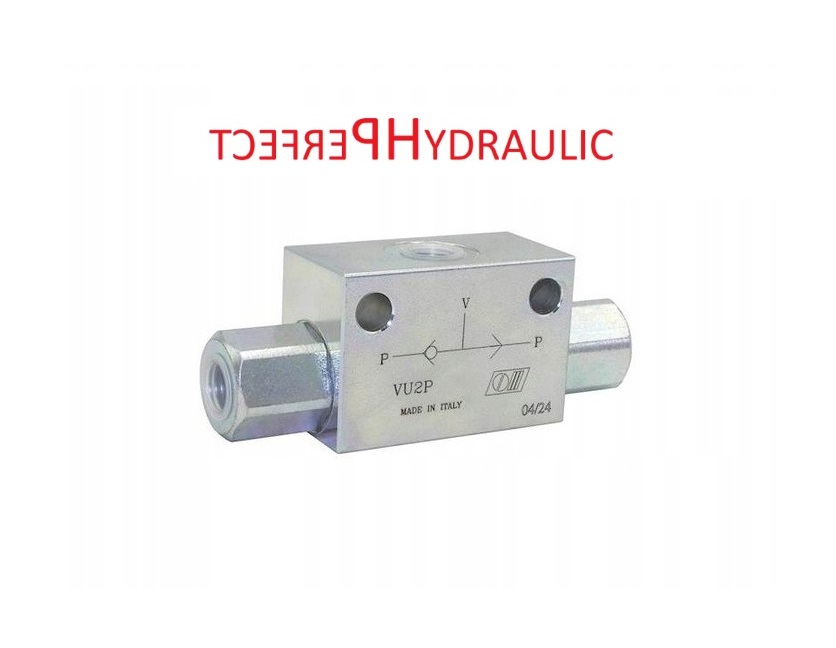

VUSF logic check valve VU2P BSP 1/4 35L/min
Application:
This valve is used to select higher pressure from two supply lines.
Connection:
Connect ports V1 and V2 to the supply lines and port C to the receiver.

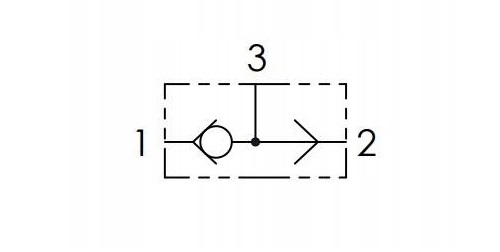

Operating principle:
Port C accepts flow from the higher pressure line, blocking the opposite port

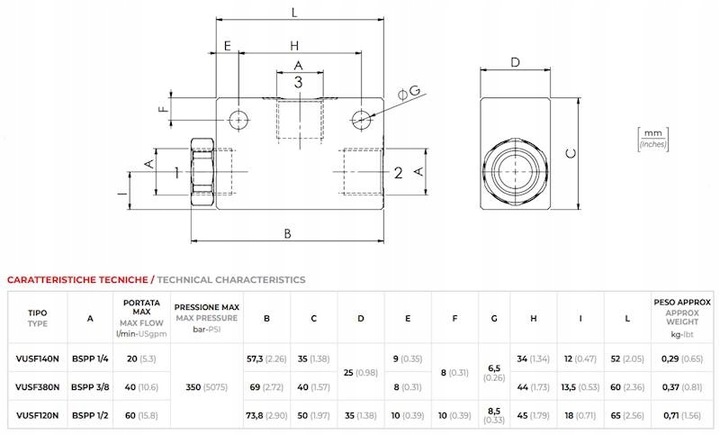

Technical data:
Maximum flow rate: 35 l/min
Internal body threads : 1/4” [BSP]
Body material: galvanised steel
Permissible maximum pressure: 350 bar
Weight: 0.27 kg
